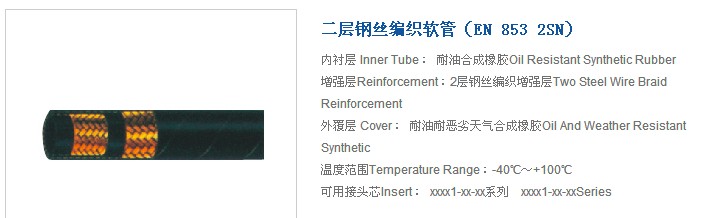

二層鋼絲編織軟管
發布日期：2013-3-22 14:23:38 來源：杭州派力威流體系統科技有限公司
.jpg)
產品技術參數：
| 軟管代號 | 公稱內徑 | 軟管尺寸 | 軟管內徑 | 軟管外徑 | 最大工作壓力 | 最小爆破壓力 | 最小彎曲半徑 | 配用套筒 | |
|---|---|---|---|---|---|---|---|---|---|
| PART NO. | mm | DASH | Inch | mm | mm | MPa | MPa | mm | |
| 2SN04 | 6 | -04 | 1/4" | 6.4 | 15.0 | 40.0 | 160.0 | 100 | S03310-04 |
| 2SN05 | 8 | -05 | 5/16" | 7.9 | 16.7 | 35.0 | 140.0 | 115 | S03310-05 |
| 2SN06 | 10 | -06 | 3/8" | 9.5 | 19.1 | 33.0 | 132.0 | 130 | S03310-06 |
| 2SN08 | 13 | -08 | 1/2" | 12.7 | 22.2 | 27.5 | 110.0 | 180 | S03310-08 |
| 2SN10 | 16 | -10 | 5/8" | 15.9 | 25.4 | 25.0 | 100.0 | 200 | S03310-10 |
| 2SN12 | 19 | -12 | 3/4" | 19 | 29.3 | 21.5 | 85.0 | 240 | S03310-12 |
| 2SN16 | 25 | -16 | 1" | 25.4 | 38.1 | 16.5 | 65.0 | 300 | S03310-16 |
| 2SN20 | 32 | -20 | 1.1/4" | 31.8 | 48.3 | 12.5 | 50.0 | 420 | S03310-20 |
| 2SN24 | 38 | -24 | 1.1/2" | 38.1 | 54.6 | 9.0 | 36.0 | 500 | S03310-24 |
| 2SN32 | 51 | -32 | 2" | 50.8 | 67.4 | 8.0 | 32.0 | 630 | S03310-32 |
