美制JIC螺紋74°密封

發(fā)布日期：2013-3-22 15:44:06      來源：杭州派力威流體系統(tǒng)科技有限公司

產品技術參數(shù)：

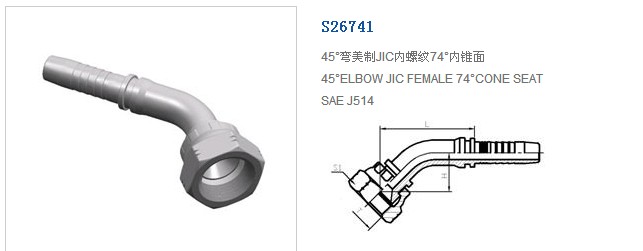

代  號	螺紋 T	軟 管 HOSE BORE		尺寸  DIMENSIONS
PART NO.	THREAD T	公稱內徑 DN	標號 DASH	L	H	S1
S26741-04-04	7/16＂X20	6	04	39	17.4	14
S26741-05-04	1/2＂X20	6	04	40	16	17
S26741-05-05	1/2＂X20	8	05	40	16.5	17
S26741-06-04T	9/16＂X18	6	04	38.2	14.4	19
S26741-06-05	9/16＂X18	8	05	42	18.3	19
S26741-06-06	9/16＂X18	10	06	45.5	20	19
S26741-07-06	5/8＂X18	10	06	46	20	22
S26741-08-06T	3/4＂X16	10	06	44	18	24
S26741-08-08	3/4＂X16	13	08	56	23.7	24
S26741-08-10	3/4＂X16	16	10	64	24.9	24
S26741-10-08T	7/8＂X14	13	08	52.8	21.4	27
S26741-10-10	7/8＂X14	16	10	64.5	25.3	27
S26741-10-12	7/8＂X14	19	12	71	28.5	27
S26741-12-08T	1.1/16＂X12	13	08	53.5	22.2	32
S26741-12-10T	1.1/16＂X12	16	10	62.7	23.5	32
S26741-12-12	1.1/16＂X12	19	12	73	30.2	32
S26741-14-12T	1.3/16＂X12	19	12	68.5	26.5	36
S26741-16-12T	1.5/16＂X12	19	12	70.7	28	41
S26741-16-16	1.5/16＂X12	25	16	85	32.2	41
S26741-20-16T	1.5/8＂X12	25	16	79.4	30	50
S26741-20-20	1.5/8＂X12	32	20	99	38.4	50
S26741-24-20T	1.7/8＂X12	32	20	95.8	35.3	55
S26741-24-24	1.7/8＂X12	38	24	113	43.9	55
S26741-32-24T	2.1/2＂X12	38	24	115.7	44.6	75
S26741-32-32	2.1/2＂X12	51	32	136.5	51.5	75
