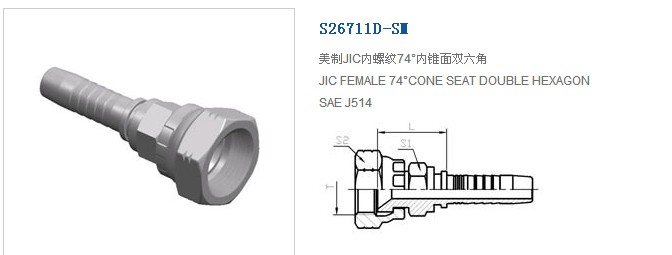

美制JIC螺紋74°密封

發布日期：2013-3-22 15:45:13      來源：杭州派力威流體系統科技有限公司

產品技術參數：

代  號	螺紋 T	軟 管 HOSE BORE		尺寸  DIMENSIONS
PART NO.	THREAD T	公稱內徑 DN	標號 DASH	L	S1	S2
S26711D-04-04SM	7/16＂X20	6	04	20	12	14
S26711D-05-04SM	1/2＂X20	6	04	20.5	12	17
S26711D-06-04SM	9/16＂X18	6	04	21	14	19
S26711D-06-06SM	9/16＂X18	10	06	21	17	19
S26711D-08-06SM	3/4＂X16	10	06	25	19	24
S26711D-08-08SM	3/4＂X16	13	08	24.5	22	24
S26711D-08-10SM	3/4＂X16	16	10	25.5	22	24
S26711D-10-08SM	7/8＂X14	13	08	24	22	27
S26711D-10-10SM	7/8＂X14	16	10	27	22	27
S26711D-12-12SM	1.1/16＂X12	19	12	31.5	27	32
S26711D-16-12SM	1.5/16＂X12	19	12	31.5	32	41
S26711D-16-16SM	1.5/16＂X12	25	16	32.5	32	41
S26711D-20-20SM	1.5/8＂X12	32	20	37	41	50
