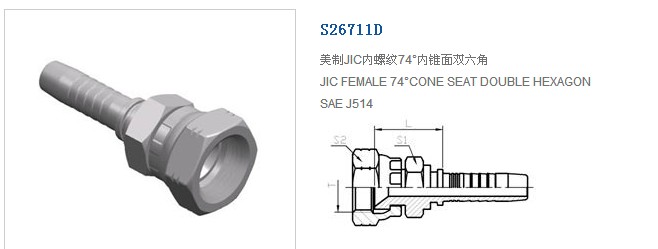

美制JIC螺紋74°密封

發布日期：2013-3-22 15:46:29      來源：杭州派力威流體系統科技有限公司

產品技術參數：

代  號	螺紋 T	軟 管 HOSE BORE		尺寸  DIMENSIONS
PART NO.	THREAD T	公稱內徑 DN	標號 DASH	L	S1	S2
S26711D-04-04	7/16＂X20	6	04	20	14	14
S26711D-05-04	1/2＂X20	6	04	20.5	17	17
S26711D-06-04	9/16＂X18	6	04	21	19	19
S26711D-06-06	9/16＂X18	10	06	21	19	19
S26711D-08-06	3/4＂X16	10	06	25	24	24
S26711D-08-08	3/4＂X16	13	08	24.5	24	24
S26711D-08-10	3/4＂X16	16	10	25.5	24	24
S26711D-10-08	7/8＂X14	13	08	28	27	27
S26711D-10-10	7/8＂X14	16	10	29	27	27
S26711D-12-12	1.1/16＂X12	19	12	31.5	32	32
S26711D-16-12	1.5/16＂X12	19	12	33.5	41	41
S26711D-16-16	1.5/16＂X12	25	16	34.5	41	41
S26711D-16-20	1.5/16＂X12	32	20	36.5	41	41
S26711D-20-20	1.5/8＂X12	32	20	39	50	50
