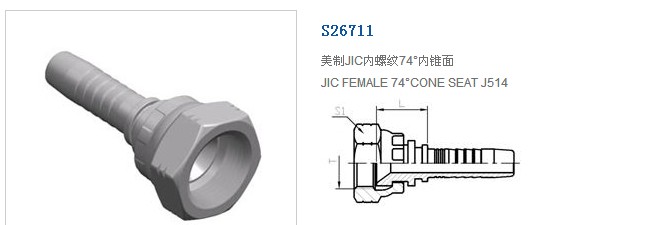

美制JIC螺紋74°密封

發布日期：2013-3-22 15:49:03      來源：杭州派力威流體系統科技有限公司

產品技術參數：

代  號	螺紋 T	軟 管 HOSE BORE		尺寸  DIMENSIONS
PART NO.	THREAD T	公稱內徑 DN	標號 DASH	L	S1
S26711-04-04	7/16＂X20	6	04	15	14
S26711-05-04	1/2＂X20	6	04	15.5	17
S26711-05-05	1/2＂X20	8	05	15.5	17
S26711-06-04T	9/16＂X18	6	04	15.5	19
S26711-06-05	9/16＂X18	8	05	15.5	19
S26711-06-06	9/16＂X18	10	06	15.5	19
S26711-07-06	5/8＂X18	10	06	16.5	22
S26711-08-06T	3/4＂X16	10	06	18	24
S26711-08-08	3/4＂X16	13	08	18	24
S26711-08-10	3/4＂X16	16	10	19	24
S26711-10-08T	7/8＂X14	13	08	19	27
S26711-10-10	7/8＂X14	16	10	20	27
S26711-10-12	7/8＂X14	19	12	20	27
S26711-12-08T	1.1/16＂X12	12	08	20	32
S26711-12-10T	1.1/16＂X12	16	10	21.5	32
S26711-12-12	1.1/16＂X12	19	12	21.5	32
S26711-14-12T	1.3/16＂X12	19	12	21.5	36
S26711-16-12T	1.5/16＂X12	19	12	22	41
S26711-16-16	1.5/16＂X12	25	16	23	41
S26711-20-16T	1.5/8＂X12	25	16	25	50
S26711-20-20	1.5/8＂X12	32	20	26	50
S26711-24-20T	1.7/8＂X12	32	20	26	55
S26711-24-24	1.7/8＂X12	38	24	26.5	55
S26711-32-24T	2.1/2＂X12	38	24	26.5	75
S26711-32-32	2.1/2＂X12	51	32	27	75
