美制ORFS螺紋密封

發布日期：2013-3-22 15:55:21      來源：杭州派力威流體系統科技有限公司

產品技術參數：

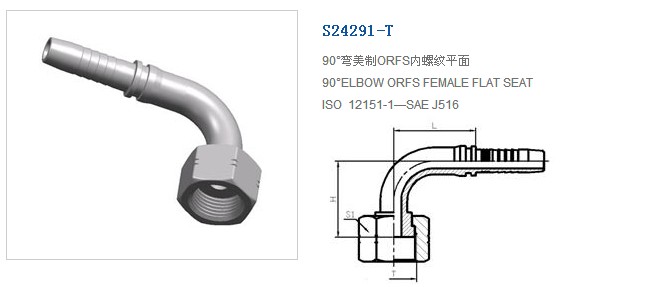

代  號	螺紋 T	軟 管 HOSE BORE		尺寸  DIMENSIONS
PART NO.	THREAD T	公稱內徑DN	標號 DASH	L	H	S1
S24291-04-04	9/16＂X18	6	04	32	38	19
S24291-06-04T	11/16＂X16	6	04	33	32	22
S24291-06-05T	11/16＂X16	8	05	33	35	22
S24291-06-06	11/16＂X16	10	06	36.5	48	22
S24291-08-06T	13/16＂X16	10	06	36.5	37	24
S24291-08-08	13/16＂X16	13	08	43.5	56	27
S24291-08-10	13/16＂X16	16	10	55	60.5	27
S24291-10-08T	1＂X14	13	08	43.5	46	30
S24291-10-10	1＂X14	16	10	55	65	30
S24291-12-08T	1.3/16＂X12	13	08	44.5	46.5	36
S24291-12-10T	1.3/16＂X12	13	10	55	51	36
S24291-12-12	1.3/16＂X12	19	12	64	75	36
S24291-16-12T	1.7/16＂X12	19	12	64	58	41
S24291-16-16T	1.7/16＂X12	25	16	73	66	41
S24291-20-16T	1.11/16＂X12	25	16	74	67	50
S24291-20-20	1.11/16＂X12	32	20	91.5	96.5	50
S24291-24-20T	2＂X12	32	20	91.5	80.5	60
S24291-24-24T	2＂X12	38	24	109	93	60
